Fiber Lasers for Special applications.

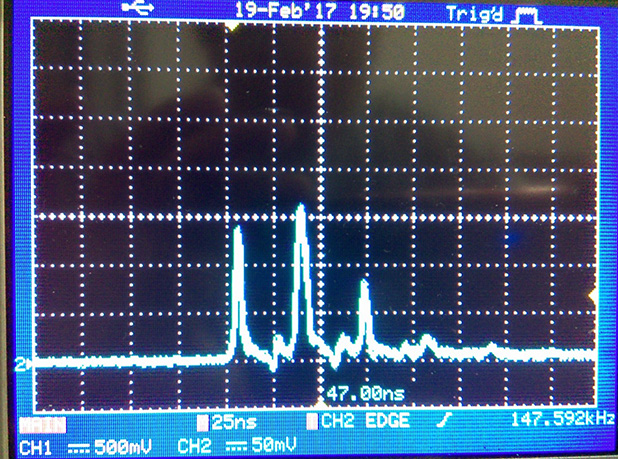

Nanosecond multi-pulse Fiber Lasers

The product special features:

  • Patented 3ns pulse fiber laser with 15KW peak power
  • Performance compatiable to picosecend fiber laser.
  • Multi-pulse design reduces the debris.
  • High peak power to averge power ratio.
  • Modular design easy to fit any system

Product description

Fiber Lasers are one of the most important components for material processing, offering many advantages over CO2 and solid-state lasers used in the conventional advanced tooling machine. Superior beam quality, small size, a simple cooling system, no physical mirrors and the lack of an expensive vibration-free optical table all make fiber lasers superior to CO2 and solid-state lasers. While CO2 and solid-state lasers have already revolutionized the tooling machine industry, fiber lasers offer even greater value. Higher peak power and multiple beam shape result in shorter cycle time and a smoother surface. The only downside is the high cost of fiber lasers, especially for small and medium-size enterprises who need this technology to upgrade their products.

TPL has a solution. By manufacturing application-specific fiber lasers using our low-cost service, TPL offers customized fiber lasers at affordable cost. If you need it, we can make it. Our latest request for a precision resistor-trimming fiber laser uses nanosecond pulses to reduce the heat damage during the cutting of materials; as a result, the tolerance of resistance value can be controlled within 0.01% during real time, 1000 times better than the traditional 10% range. Partner with TPL, and let TPL turn your business into a success.

Specification Table

There is also information,Please swipe right

specificationMinTypicalMaxUnits
Wavelength105010641070nm
Average Power2.733.3Watt
Peak Power101520KW
Rising time
100200us
Falling time
100200us
Spot size678mm
Divergence angle0.080.10.12mrad
pointing laser power0.512mW
Voltage90
240VAC
Power Consumption305070Watt
Working Temperature0
+40
Storage Temperature-10
+60
Warm Up Time
12min
Weight

10Kg
尺吋
350Lx400Wx150H
mm
Length of Fiber11.52m

Diagram
