Product

Chip/Bar on Carrier

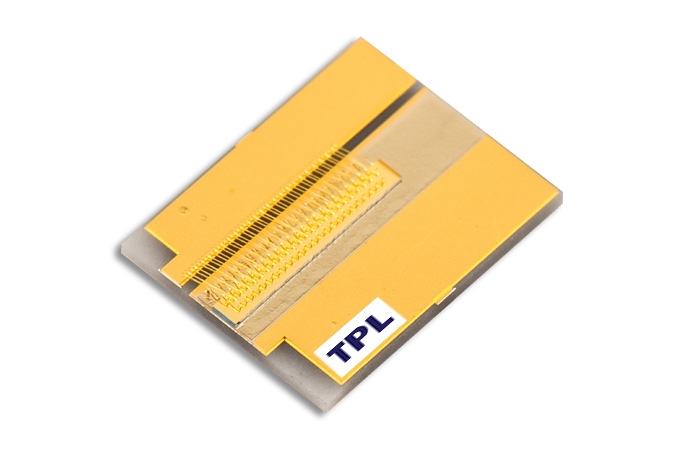

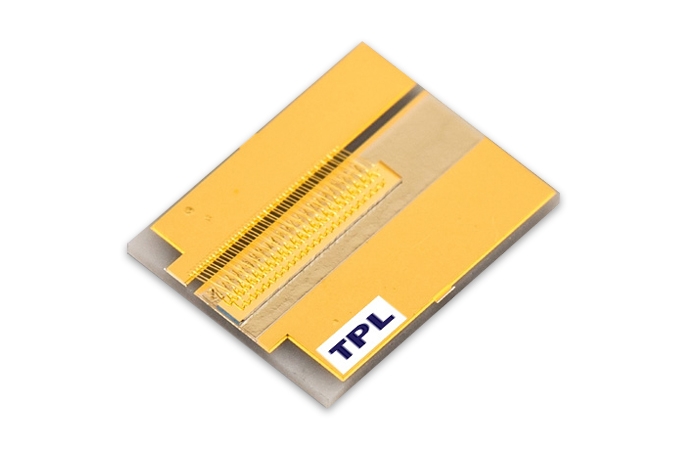

12W Single Laser Chip on Submount, CoS

The product special features:

  • Fiber Laser Pumping
  • Materials Processing
    . Hardening . Cladding . Welding
  • Medical / Aesthetic

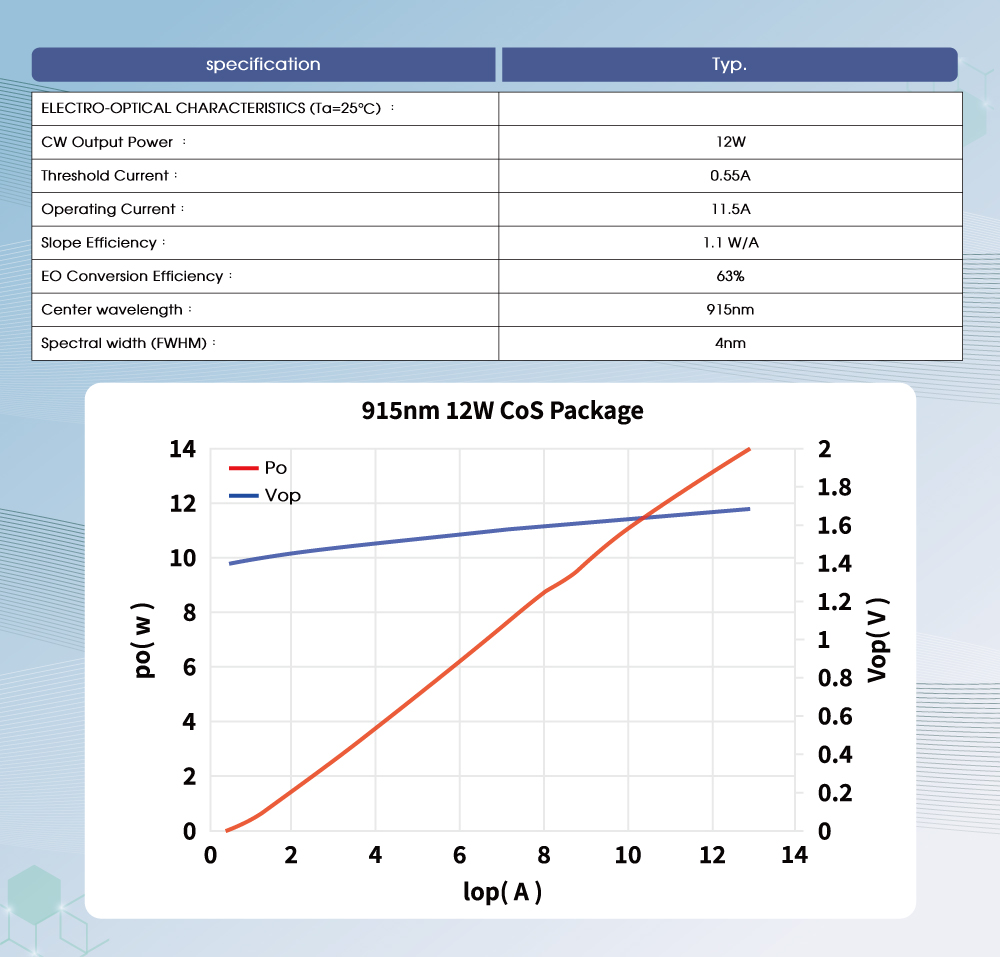

Specification Table

There is also information,Please swipe right

specification12W
ELECTRO-OPTICAL CHARACTERISTICS (Ta = 25°C)
CW Output Power:12W
Threshold Current:0.55A
Operating Current:11.5A
Slope Efficiency:1.1 W/A
EO Conversion Efficiency:63%
Center wavelength:915nm
Spectral width (FWHM):4nm

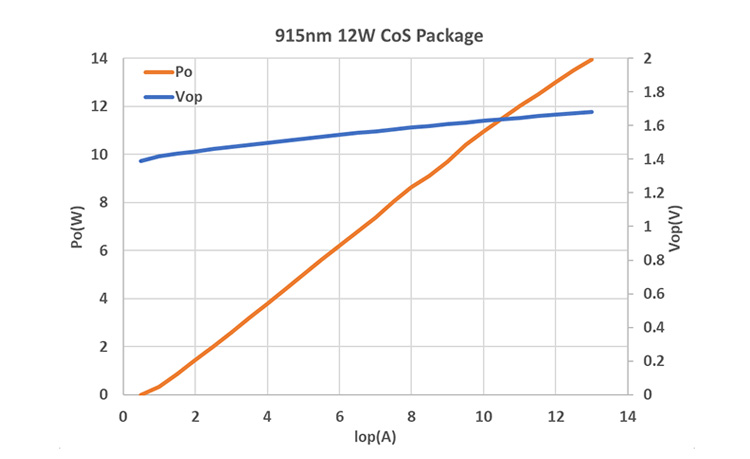

Diagram
