Product
Chip/Bar on Carrier
-
-

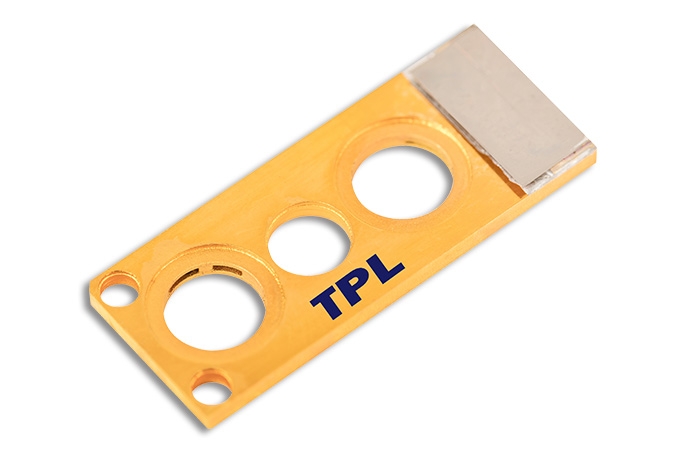

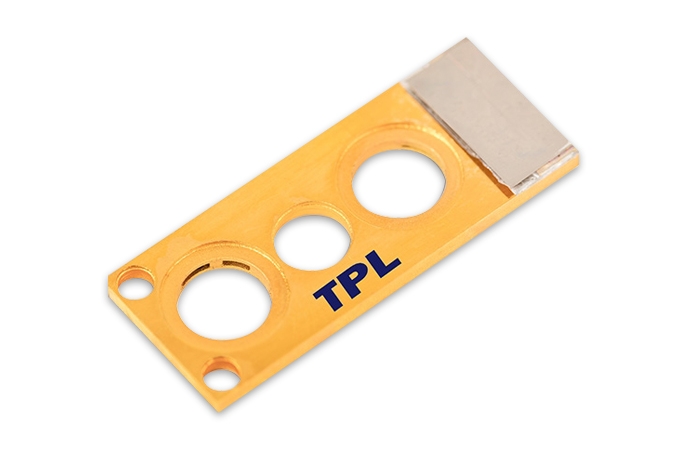

100W Micro Channel Cooled Laser Diode Array
The product special features：
- Semiconductor
． Laser Annealing - Materials Processing
． Hardening ． Cladding ． Welding - Medical / Aesthetic
- Semiconductor

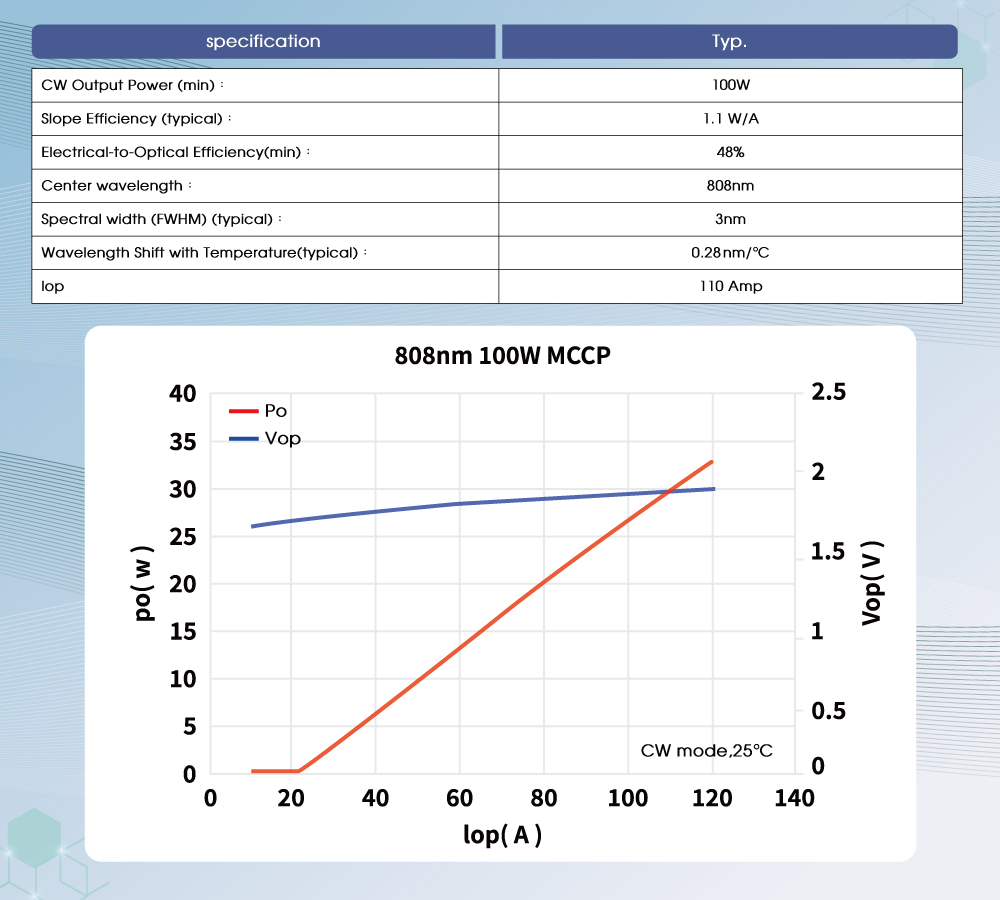

Specification Table
There is also information,Please swipe right
| specification | 100W |
|---|---|
| CW Output Power (min): | 100W |
| Slope Efficiency (typical): | 1.1 W/A |
| Electrical-to-Optical Efficiency (min): | 48% |
| Center wavelength: | 808nm |
| Spectral width (FWHM) (typical): | 3nm |
| Wavelength Shift with Temperature (typical): | 0.28 nm/℃ |
| Iop | 110 Amp |

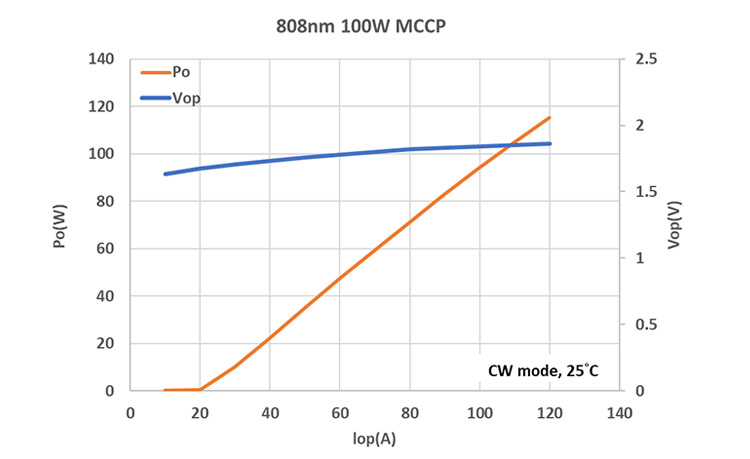

Diagram
