High Brightness Fiber-coupled Diode Laser Module

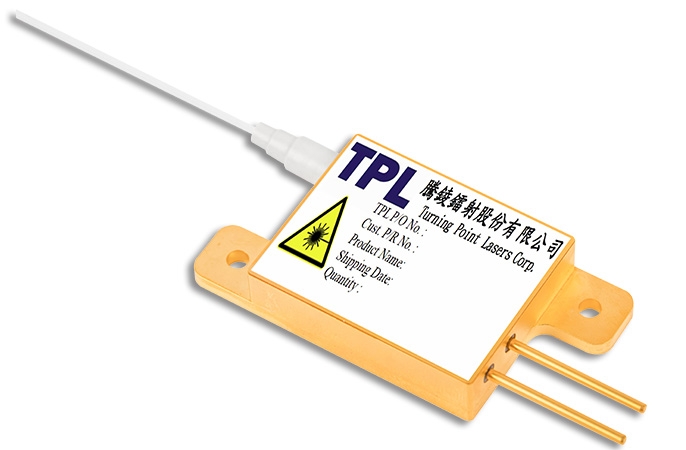

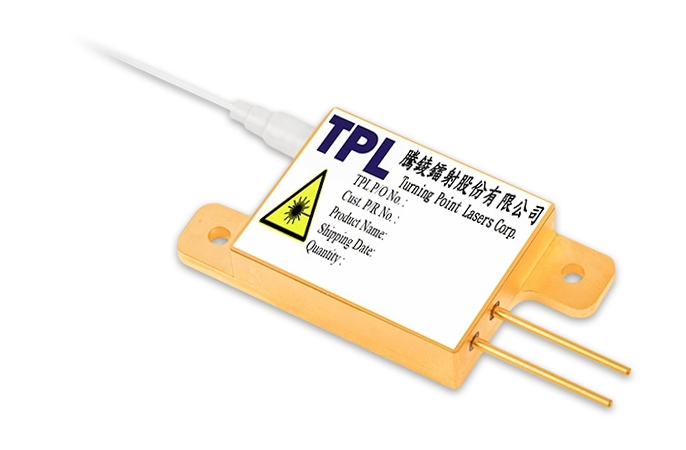

915nm 30W Fiber-coupled Diode Laser Module

The product special features:

  • Fiber Laser Pumping
  • Materials Processing
    . Hardening . Cladding . Welding
  • Medical / Aesthetic

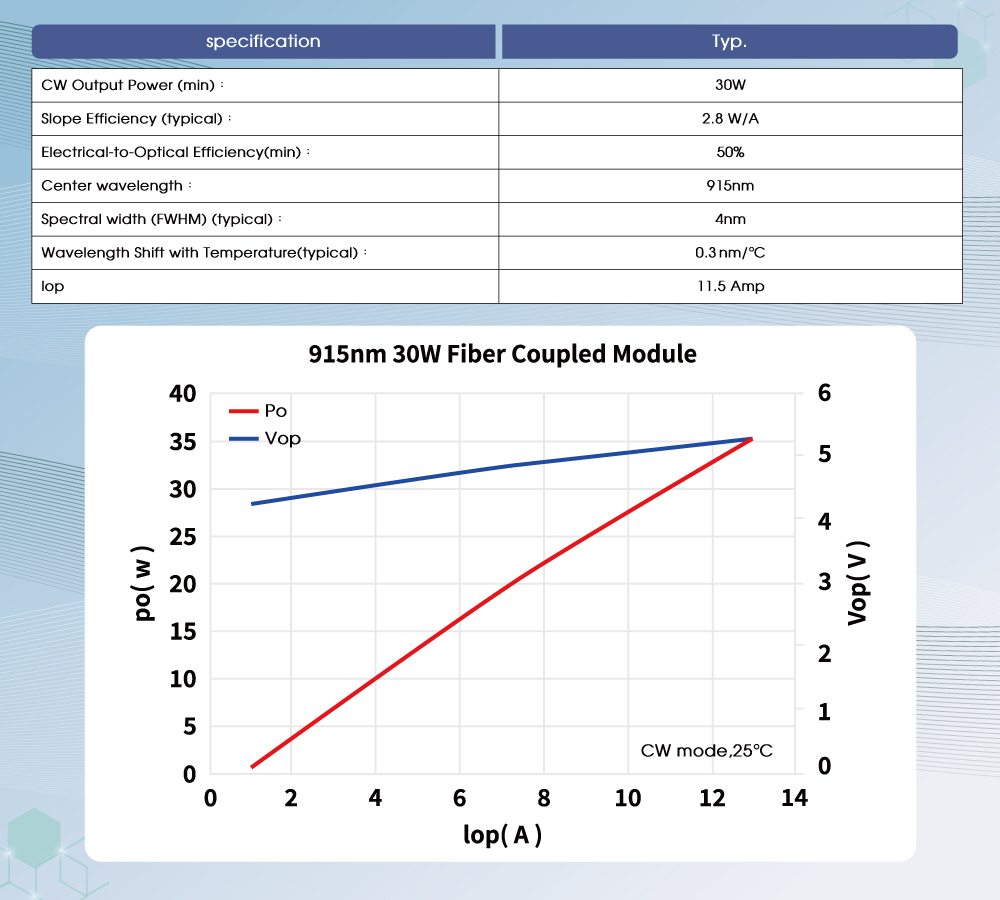

Specification Table

There is also information,Please swipe right

specification30W
CW Output Power (min):30W
Slope Efficiency (typical):2.8 W/A
Electrical-to-Optical Efficiency (min):50%
Center wavelength:915nm
Spectral width (FWHM) (typical):4nm
Wavelength Shift with Temperature (typical):0.3 nm/℃
Iop11.5 Amp

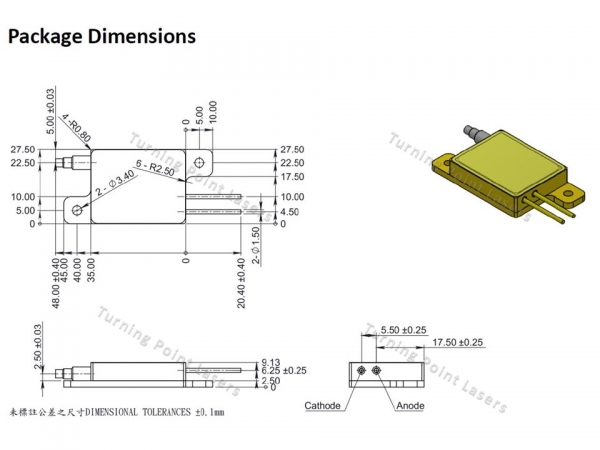

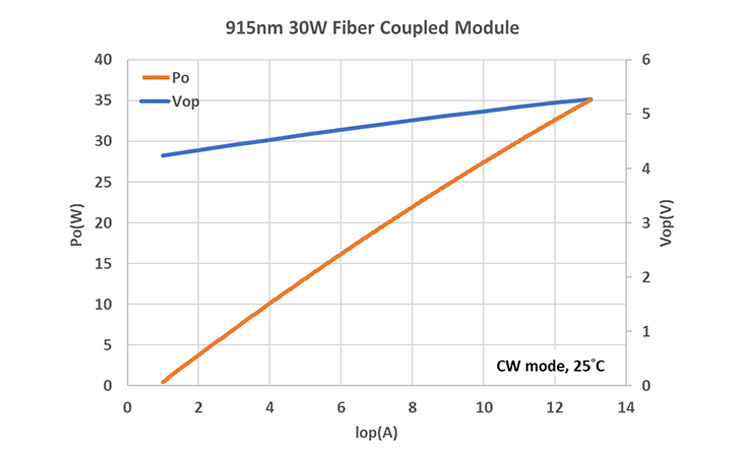

Diagram
