Product

High Brightness Fiber-coupled Diode Laser Module

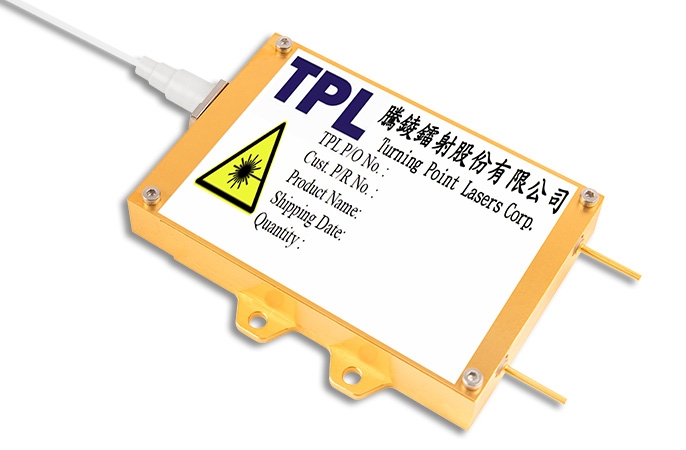

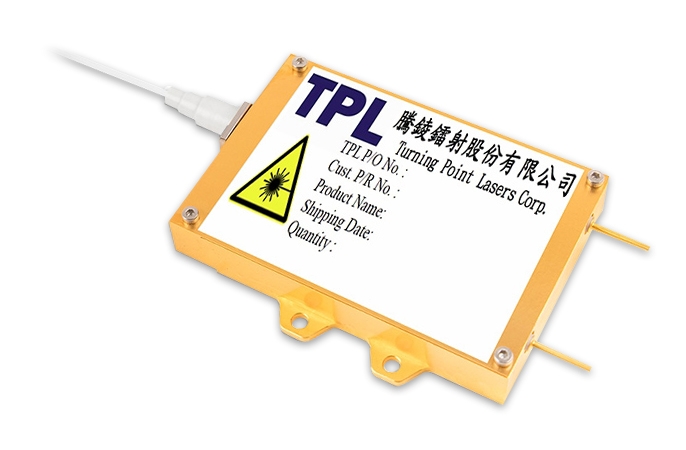

915nm 160W Fiber-coupled Diode Laser Module

The product special features:

  • Fiber Laser Pumping
  • Materials Processing
    . Hardening . Cladding . Welding
  • Medical / Aesthetic

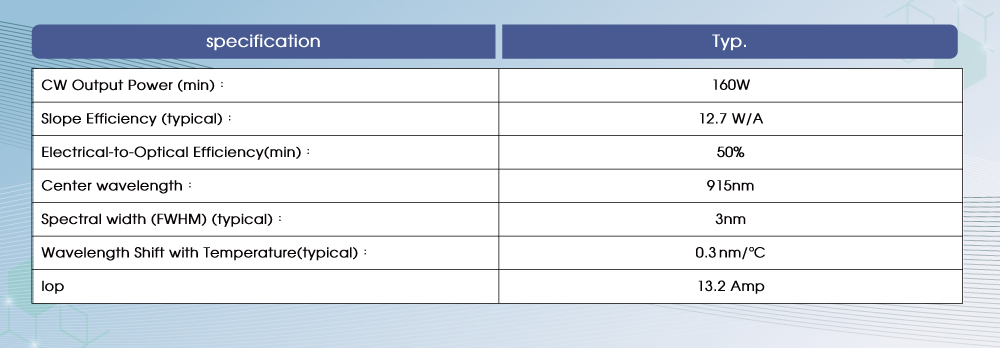

Specification Table

There is also information,Please swipe right

specificationTyp.
CW Output Power (min):160W
Slope Efficiency (typical):12.7 W/A
Electrical-to-Optical Efficiency (min):50%
Center wavelength:915nm
Spectral width (FWHM) (typical):3nm
Wavelength Shift with Temperature (typical):0.3 nm/℃
Iop13.2 Amp
