產品介紹
雷射晶粒
-
-

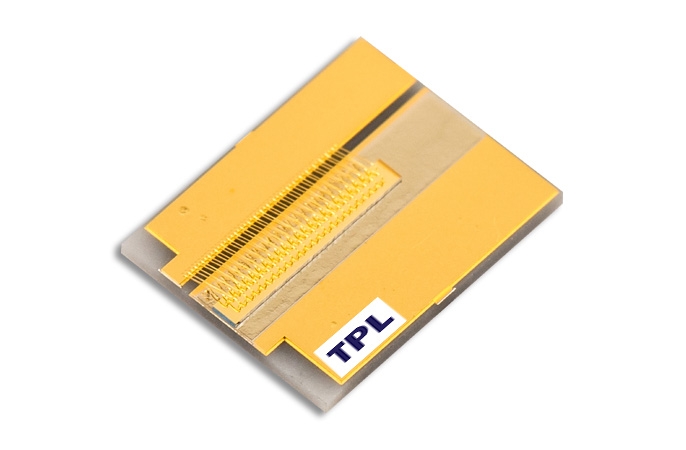

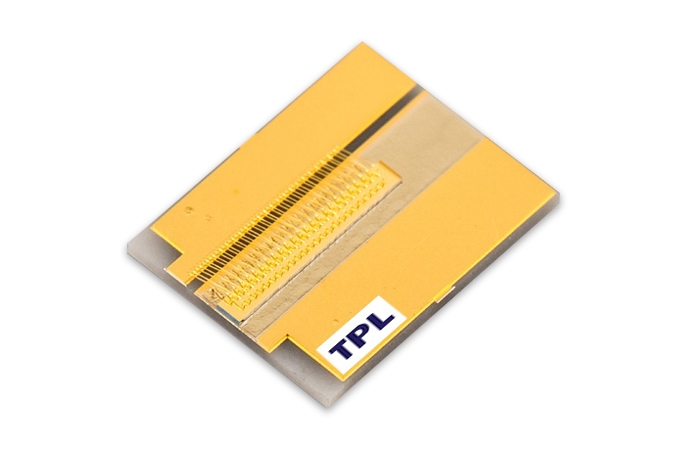

12W Single Laser Chip on Submount, CoS
產品特色：
- 光纖激光泵浦
- 材料加工
．硬化．熔覆．焊接 - 醫學/美學

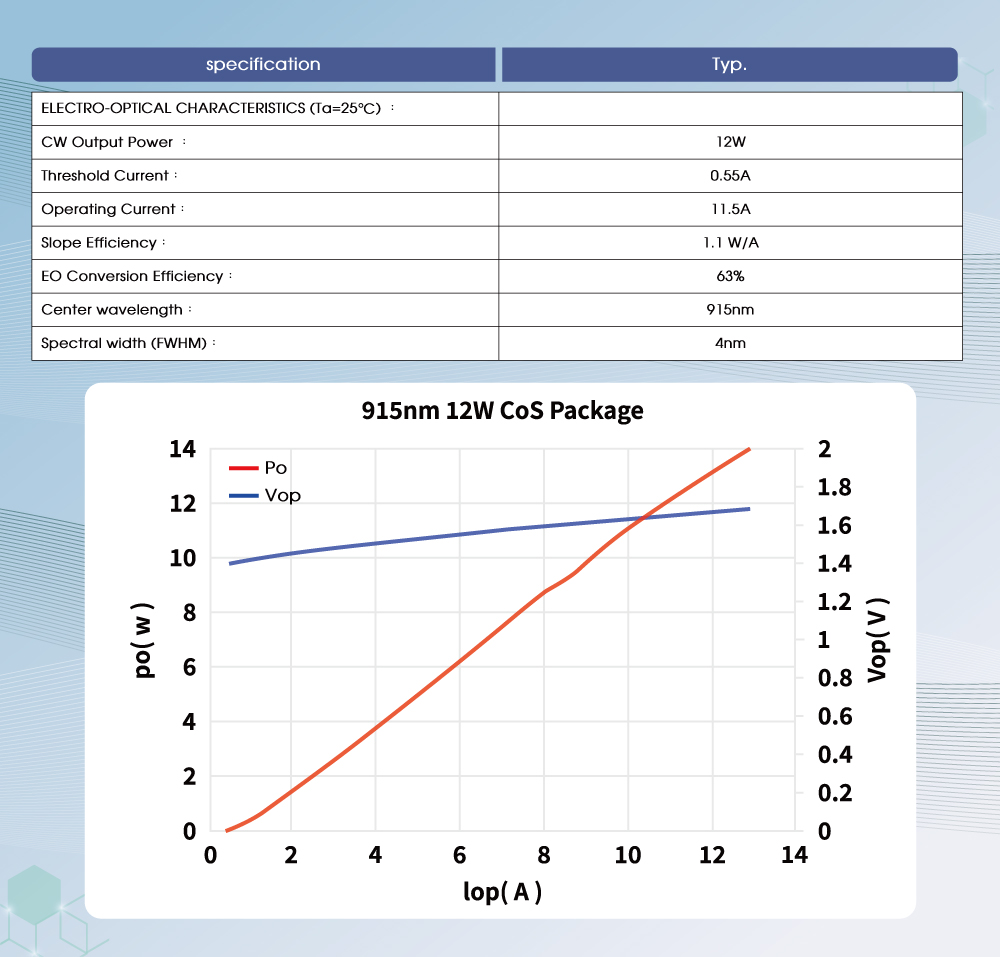

規格表
還有資料，請向右滑動
| specification | 12W |
|---|---|
| ELECTRO-OPTICAL CHARACTERISTICS (Ta = 25°C) | |
| CW Output Power: | 12W |
| Threshold Current: | 0.55A |
| Operating Current: | 11.5A |
| Slope Efficiency: | 1.1 W/A |
| EO Conversion Efficiency: | 63% |
| Center wavelength: | 915nm |
| Spectral width (FWHM): | 4nm |

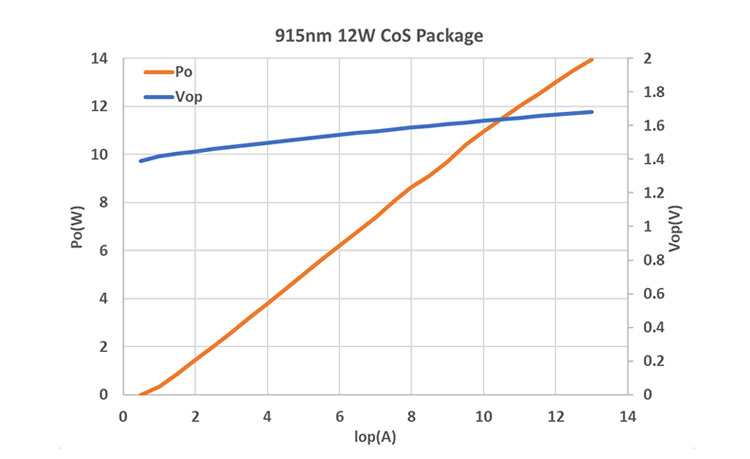

分析圖
